Béton malaxeur / toupie Qingdao Promising 2.0CBM Self-Loading Concrete Mixer Truck CML200 4x2 Gazoil Euro 2 neuf

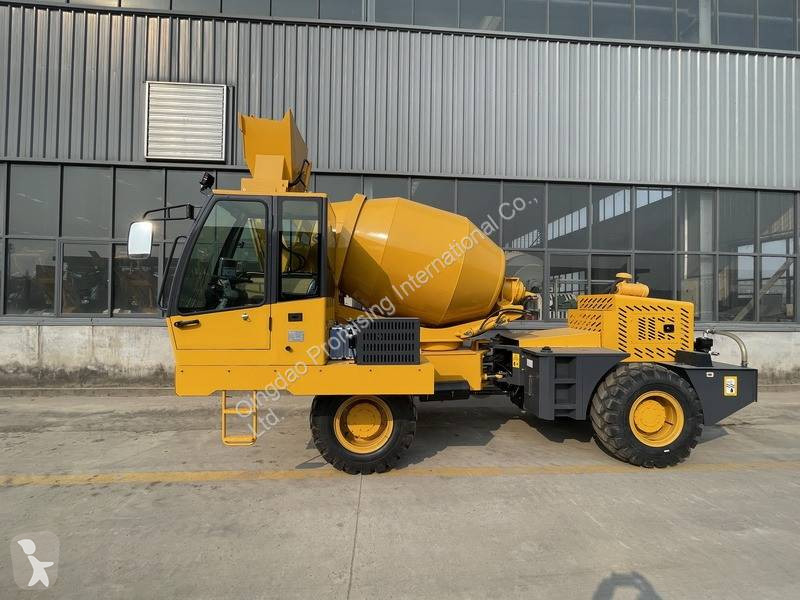

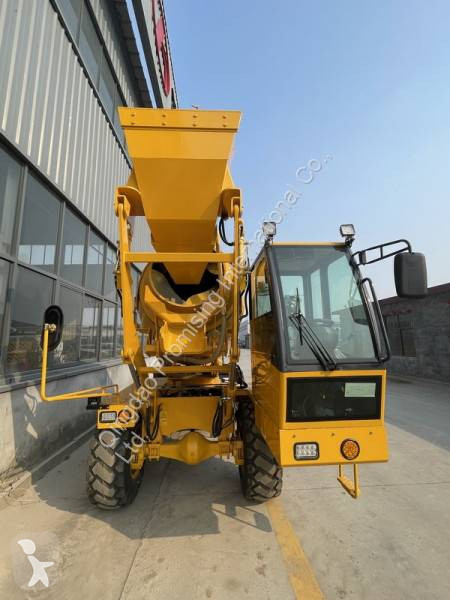

2.0CBM Self-Loading Concrete Mixer Truck CML200
Application:
Concrete mixer trucks, or transit mixers, are used to mix and transport ready-mix concrete from the batch plant to the job site. Wherever concrete is produced and moved, concrete mixer loaders are employed. Our self-loading mixer is rough terrain machine which can be operated by one person. The automatic feeding mixer truck comes with electronic weight batching and has a typical concrete output of 8 CBM/hour.
Features:
76kW (103HP) 4-cylinder Diesel Engine
Overall Thickened Frame Design offers a higher stability.
25km/h Driving Speed may fulfill running for a long distance
Two Oversized Water Tanks may realize single mixing of cement and flushing of tank.
South Korea Imported and Custom-Designed Key Hydraulic Components improve the softness and stability of the truck, which are more compatible with this model.
Improved service life of the whole machine.
Using an Enlarged Drum Rotating Motor ensures more uniform mixture and faster discharging.
A Complete Dashboard and Instruments in Cabin enables the machine to complete all kinds of work, such as self-loading, self-unloading, mixing, discharging, and water adding etc.
Deluxe Cab provides more comfortable working environment.
4.75mm-thick Manganese Plate Made Drum makes it have better wear resistance and longer service life.
The whole machine uses Waterproof Circuits and LED Lamps.
French TOTAL Oil Product is applied to ensure the purity of hydraulic oil and prolong the service life.
Shaped Seamless Steel Pipe Made Frame by Riveted Welding has reasonable design and higher stability.
4-wheel Drive
2.2CBM Discharging Capacity/Drum
Widened Construction Tires offer a higher load-bearing capacity.

Technical Specifications:
1. Geometric Volume of Mixing Drum: 3.0CBM
2. Actual Mixing Volume of Mixing Drum: 2.0CBM
3. Residual Volume of Mixing Drum: Less than 0.8%
4. Mixing Drum Concrete Output: 8 CBM/hour, up to 4 batches per hour
5. Mixing Drum Mixing Speed: 3 gears both Forward & Reverse Rotation
6. Engine: 76 kW (103 HP)/2400rpm Four-cylinder, Inline, Water-cooled, Four-stroke YUNNEI YN38GBZ Diesel Engine
7. Drive System Hydraulic Component: Imported from South Korea
8. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
9. Low Speed: 0-9.5 km/h
10. High Speed: 0-25 km/h
11. Drive Mode: 4-wheel Drive
12. Wheel Base: 1960 mm
13. Gradeability: 30 degree
14. Hydraulic System: Two Variable Stroke Pumps to Drive Vehicle and Mixer Separately, Two Constant Rate Pumps-Providing power to Drum, Brake and Water System
15. Cabin: Luxury Cabin
16. Bucket Capacity: 0.4 CBM with Hydraulic Controlled Gate
17. Chute: Hydraulically Controlled Adjustable Chute with 15 degree vertical movement and free horizontal movement
18. Brake: Wet Brake, Parking Brake with Gearbox
19. Tire: 16/70-20-14PR Construction Tire
20. Steering: Hydraulic Rear Wheel Steering
21. Battery: 2x 12V/120Ah Battery for Lighting & Ignition
22. Fuel Tank Capacity: 180 L
23. Water Tank Capacity: 500 L
24. Operating Weight: 6000 kg
25. Overall Dimension (L x W x H): 6450 x 2480 x 2870mm


Standard Configuration:
4-wheel drive, 2-wheel steering, hydraulic torque converter transmission, dual screen backup camera (reversing camera), rotating beacon light, reversing alarm, radio, electric fan, emergency hammer, hand brake, wearing parts, tool box.

Optional Parts & Functions:
Slewing Drum with 270 degree Discharge, Electronic Weighing System, Tilting Drum, Air Conditioning, Steel Wire Construction Tire, and Other Optional Engines, etc.


Note:
1. The technical specifications are for standard models only.
2. Other optional accessories and requirements are available upon request.
3. All photos are for reference only. Machines shown may include optional parts.
4. All specifications and design characteristics are subject to change without prior notice.
